Brief Introduction:

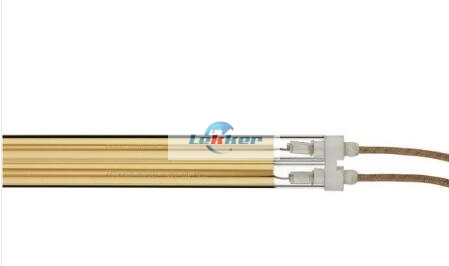

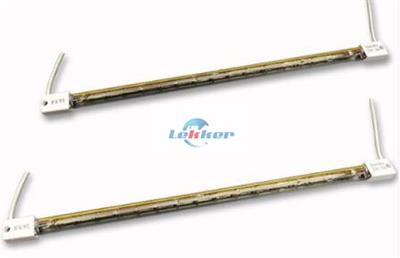

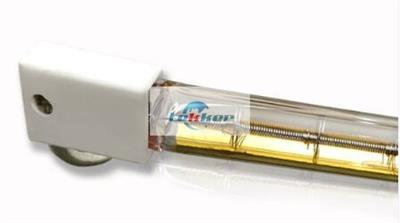

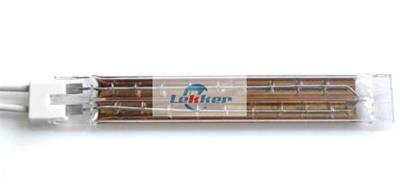

Gold-coated quartz heating tube is generally divided into
single hole and double hole gold plated. Gold-coated quartz heater directional
radiant heater can increase the utilization rate of 90%.
Features: Fast heating, small size, high
thermal efficiency. This heater used its own gold-coated component reflect
infrared, the radiation effect is excellent. Because of eliminating the
reflector, it is greatly facilitate the installation

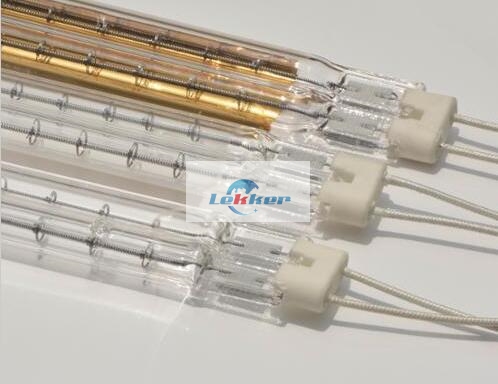

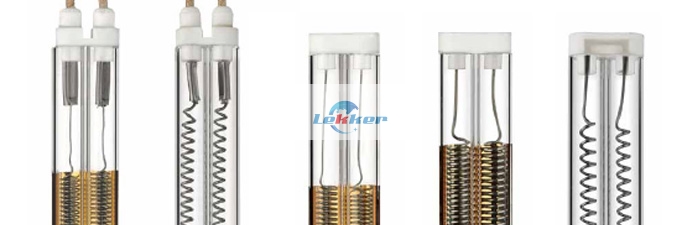

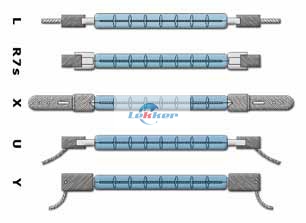

Components and installation: Single hole and double hole structure.

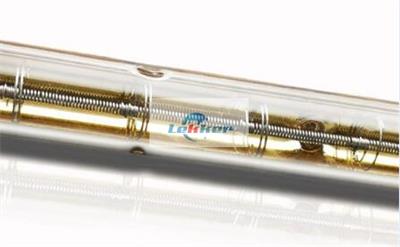

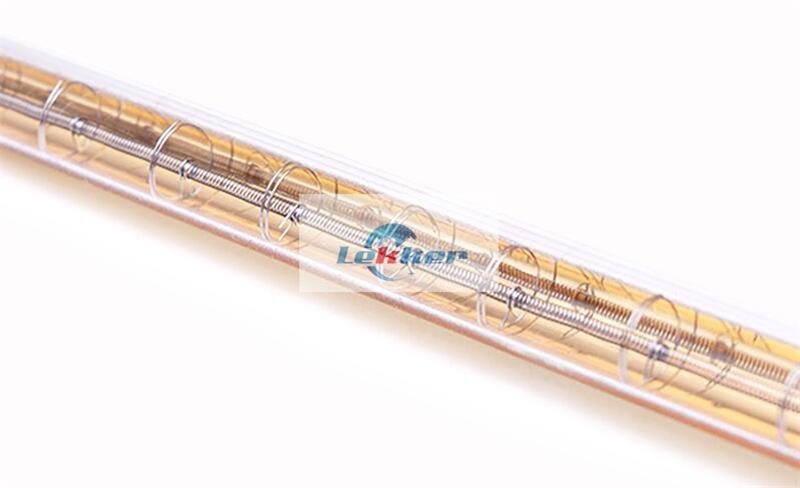

Structure: Clear quartz tube, high temperature ceramic, heating wire, high
temperature shield connect wire, pure gold-coated film.
Life: 5000-10000 hours
Appliciation: Bridge, water-based paint, aluminum alloy wheels, floor, paint;
Car seat, powder, barrier, powder, toolbox, dipping; Security doors, powder,
paint and so on, Supporting glass tempering, bending furnace, and other drying
equipment.
Model selection:
Diameter: 16*33mm, 11*23mm
Length: 300~2500mm
Power: 300W~5000W
Voltage: 220/380V
Installation Note:
(1)A horizontal installation, the inclination is not greater than 30 degrees.
(2) when used, matched with aluminum reflector or stainless steel reflector,
flat or parabolic reflector. But parabolic reflector is the best: To improve
the high utilization of radiation.
(3) Avoid excessive vibration and shaking.
(4)The optimal control of distance between the heating element and the object
to be heated is 100 - 400 mm.
(5) Quartz heating elements are brittle materials, when installation and use,
should be aware of safety, according to the specific circumstances of the
object to be heated, to take the necessary protective measures in order to
avoid mechanical damage.
(6) Measured lifetime of single tube heating element is 15000 hours, life of
micky quartz tube up to ten years. In order to improve the radiation
efficiency, should regularly clean the pipe surface dirt and dust.
Diameter of tube(mm)
|
Total length in mm
|
Power (W)
|
Voltage (V)
|
18-20
|
200mm
|
200W
|
220V/380v
|
18-20
|
300mm
|
300W
|
220V/380v
|
18-20
|
400mm
|
400W
|
220V/380v
|
18-20
|
500mm
|
500W
|
220V/380v
|
18-20
|
600mm
|
600W
|
220V/380v
|
18-20
|
700mm
|
700W
|
220V/380v
|
18-20
|
800mm
|
800W
|
220V/380v
|
18-20
|
900mm
|
900W
|
220V/380v
|
18-20
|
1000mm
|
1000W
|
220V/380v
|
18-20
|
1200mm
|
1200W
|
220V/380v
|
18-20
|
1500mm
|
1500W
|
220V/380v
|
18-20
|
1600mm
|
1600W
|
220V/380v
|
18-20
|
2000mm
|
2000W
|
220V/380v
|
