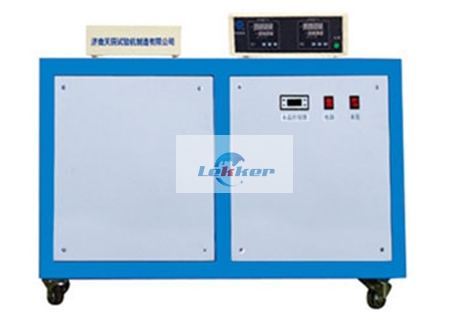

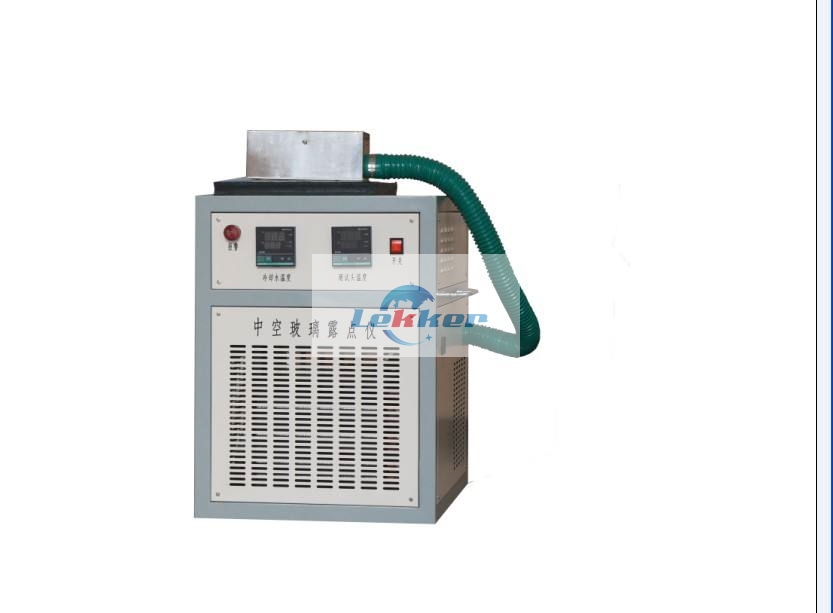

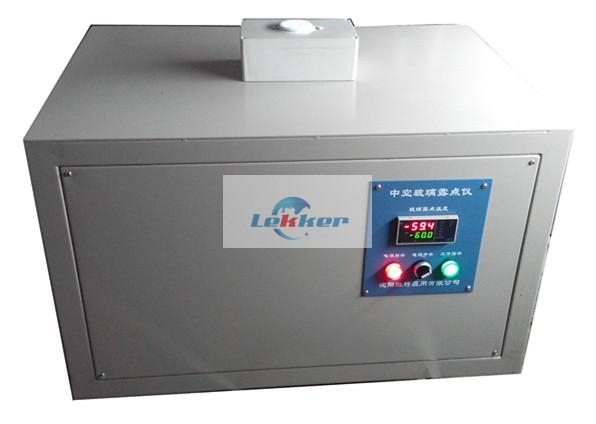

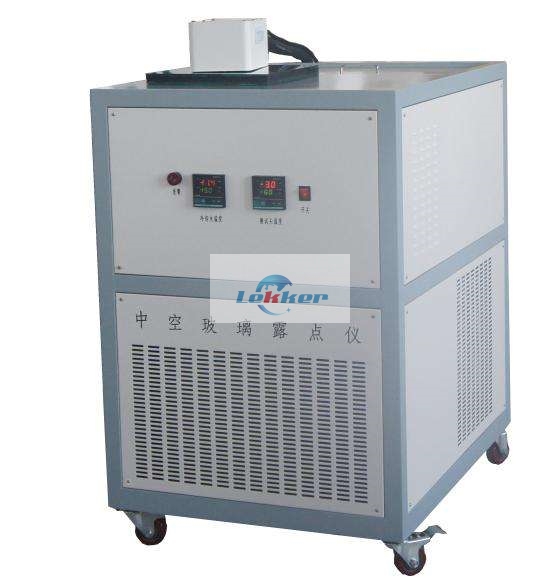

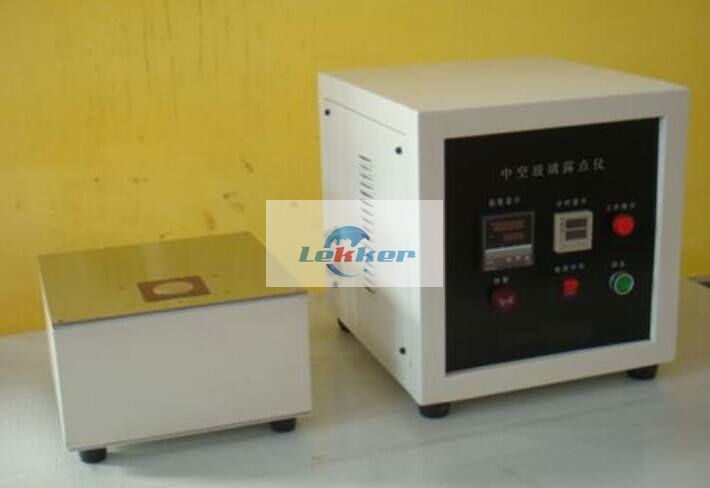

Dew Point Test Instrument For IGU unit

Basic information：

Model: LVE011

Usage: For testing the insulated glass

Type: container Type

Specification: as customer’s requirements

Brand: Lekker

Transport Package: Carton

Hot Line：0086-18739097515 Ask now

分享到：

Product Details

1. Temperature of cooling test end: <-60℃
2. Temperature resolution: 0.1℃
3. Temperature measurement accuracy: ±0.5℃

4. Time Range: 1～10min
5. Time resolution: 1 s
6. Power: 0.6kw
8. Size of control box: 300×240×198mm (L x W x H)
9. Size of testing box: 260×230×90mm (L x W x H)
10. Cooling water system: 900×600×600mm (L x W x H), provided by customer
11. Total weight: about 40 kgs
