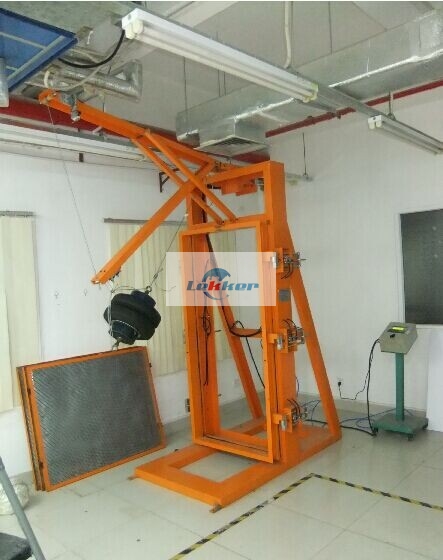

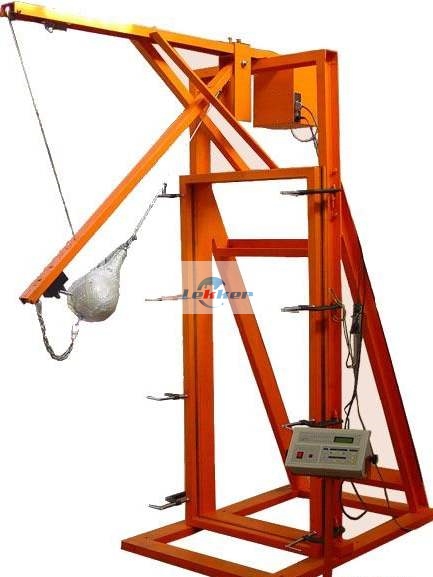

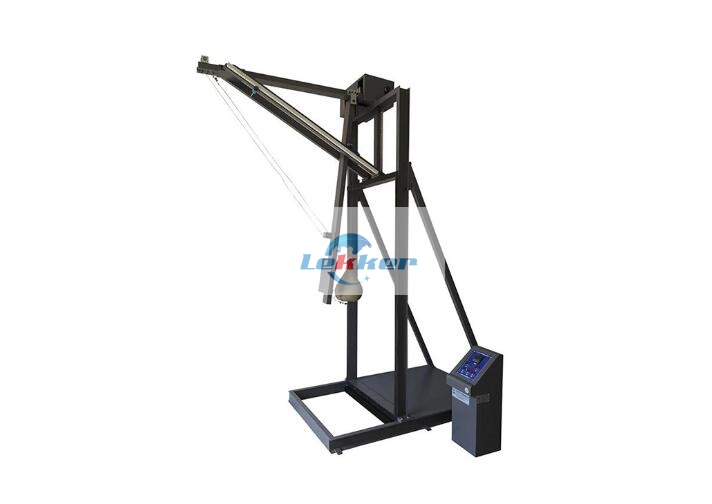

This grapeshot bag impact test instrument is used to test the penetration performance of the tempered glass. This instrument use one impact body with same weight to test the penetration or strengh of tempered glass from the different height position.

This instrument is according to the testing stand: GB9962; GB9963

Technical Index:

1. Max. Impact Height: 1200

2. Test Impact Height (Adjustable): 300mm、450mm、600mm、750mm、900mm、1200mm

3. Impact Height Deviation: ±30mm

4. Grapeshot Bag Weight: 45±0.1kg

5. Max. Diameter Of Grapeshot Bag: 250mm

6. Grapeshot Bag Tripping Way: Electromagnet Traction

7. Height-measurement element:Pull encoder

8. Flexible Steel Rope Diameter: φ3.0mm

9. Inner Size Of Wooden Sample: Length: 1910mm; Width: 845mm

10. Sample Glass Size: Length: 1930mm; Width: 864mm

11. Machine Frame Material: 10# Steel Channel

12. Rubber Base Plate: Width: 20mm; Thickness: 3mm; Hardness Shao Er: A50

13. Machine Outer Size: Length: 2750 x 1000 x 2700mm (L x W x H)

14. Fixing Way: Foundation Bolt

15. Power: 1700W

16. Power Supply: AC220V，50Hz
